Key Features

• Angled connection that joins two lines (pipes, hoses, or tubes) at a defined angle to route fluid paths efficiently.
• John Deere part number 38H1003 for accurate replacement and system compatibility.
• Compact elbow geometry designed to fit in constrained spaces on agricultural equipment and implements.
• Designed to mate with components that use the same port type and thread standard; verify specifications before installation.

Product Details

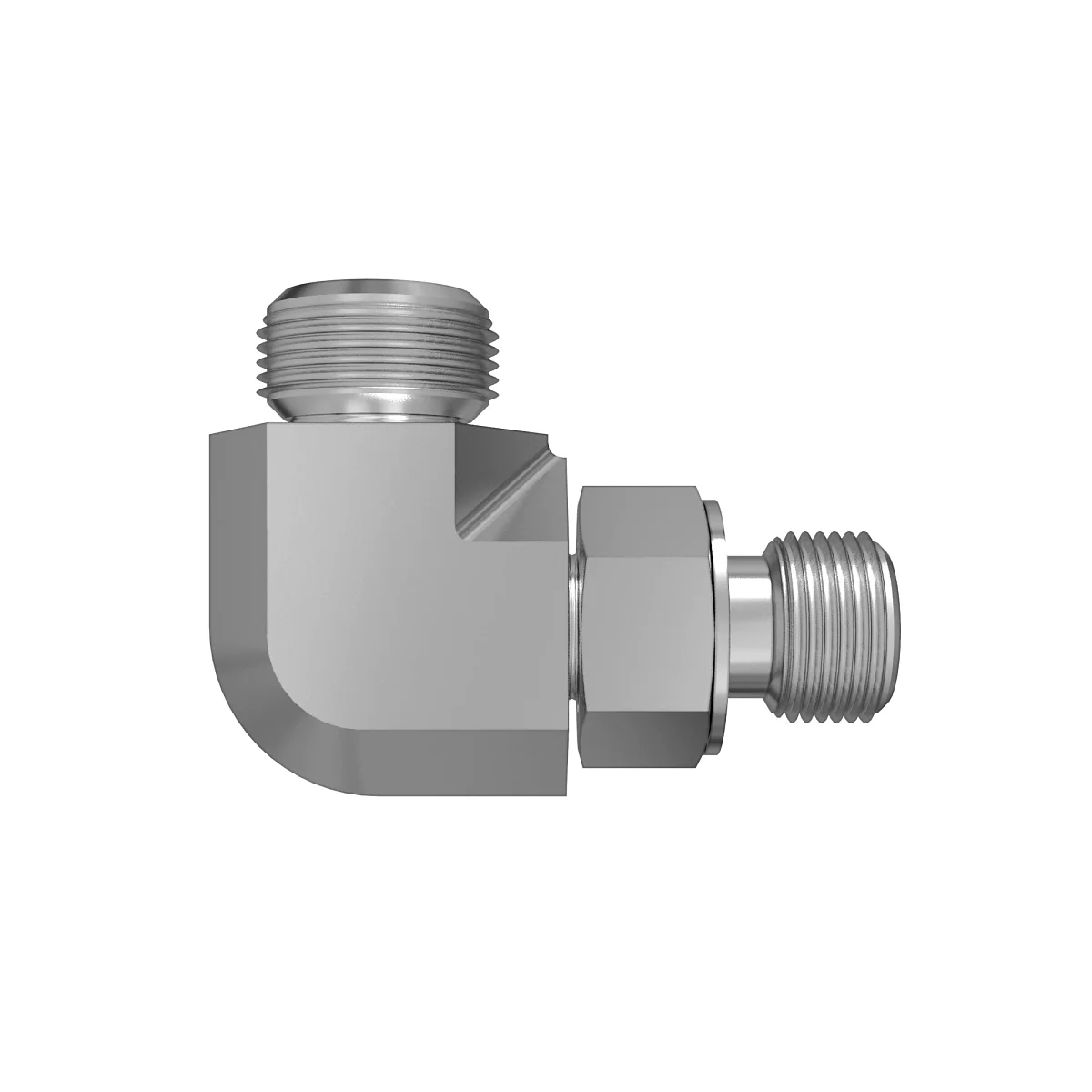

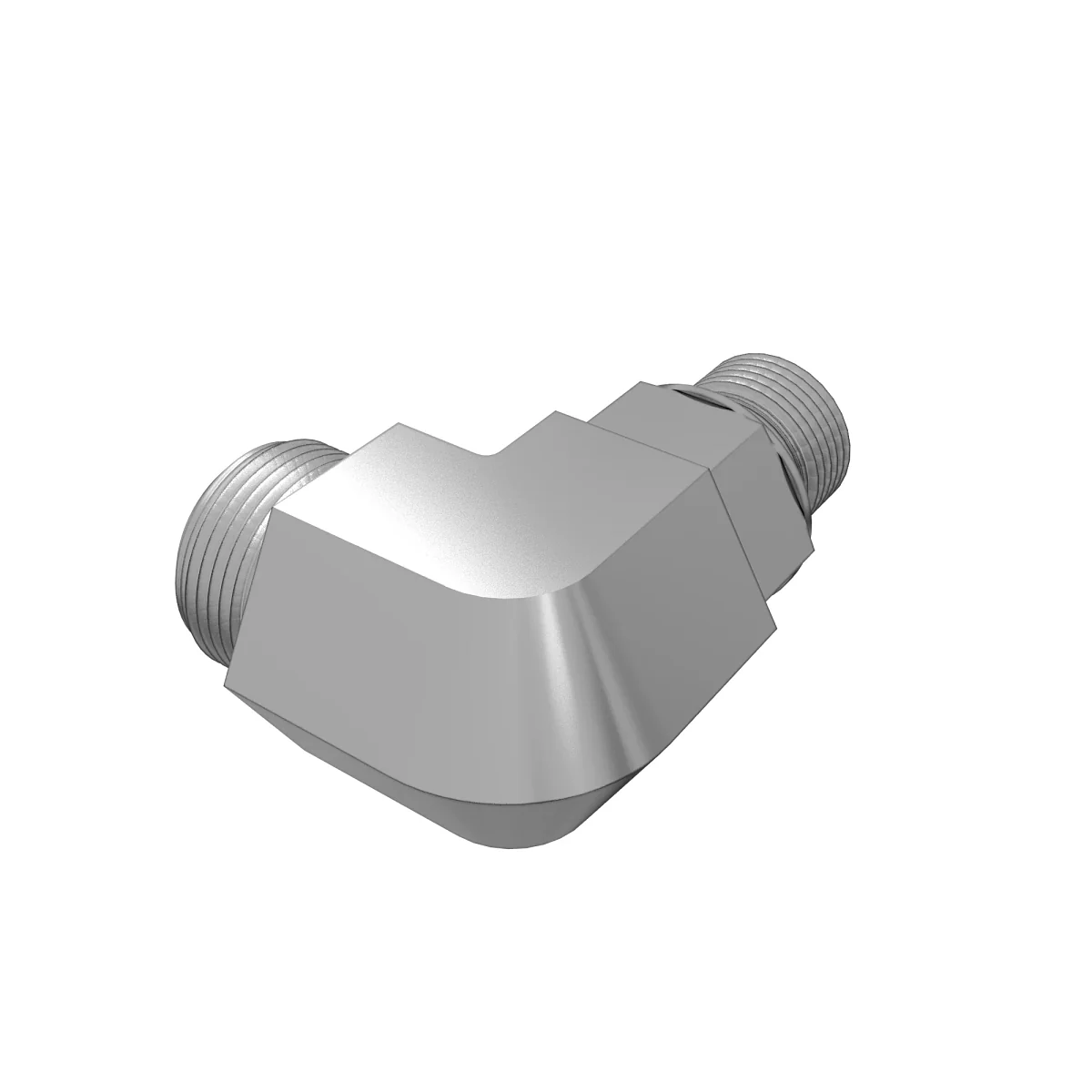

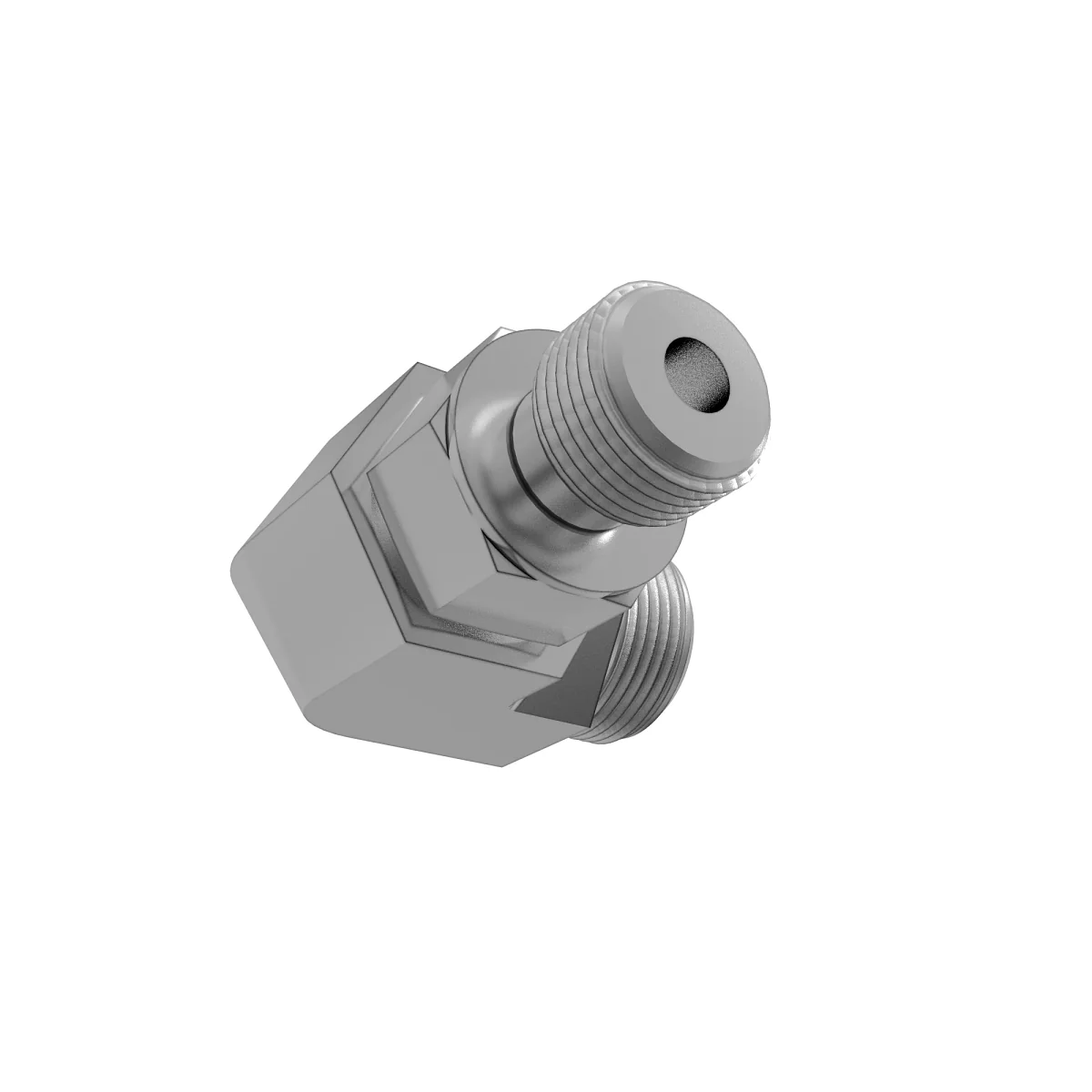

• Part: John Deere Elbow Adapter Fitting — 38H1003
• Function: Provides an angled junction between two connections to redirect flow between lines.
• Application context: Intended for Deere equipment where an elbow connection is required to accommodate routing constraints.
• Installation considerations: Ensure mating components share compatible port size and thread standard; confirm correct alignment for the elbow angle.

Compatibility

• Designed for use with John Deere equipment and Deere-approved hydraulic/piping assemblies.
• Requires mating fittings with matching port type and thread size; consult equipment documentation to verify exact specifications.
• Best suited for installations where space limitations necessitate an elbow connection rather than a straight run.
