Key Features

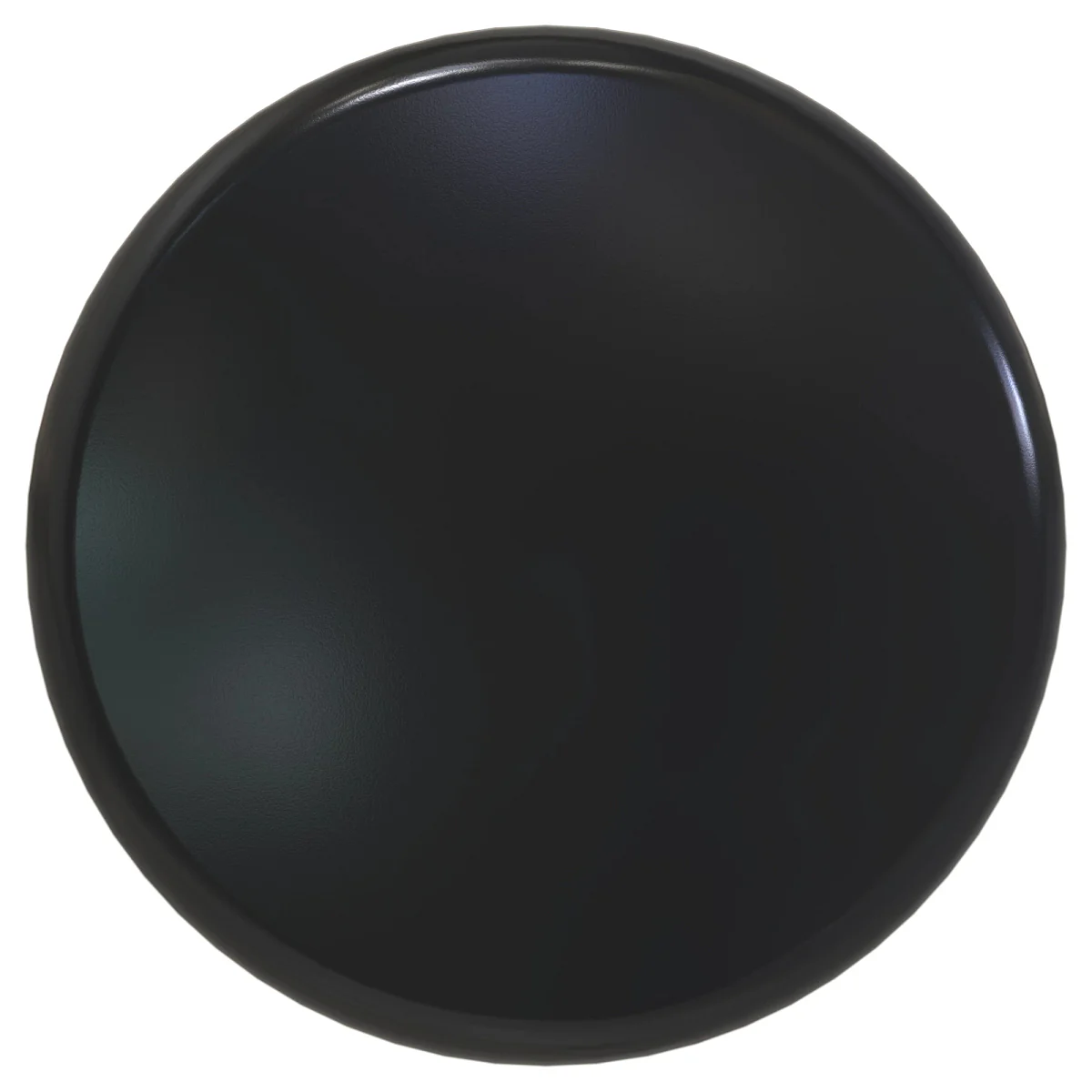

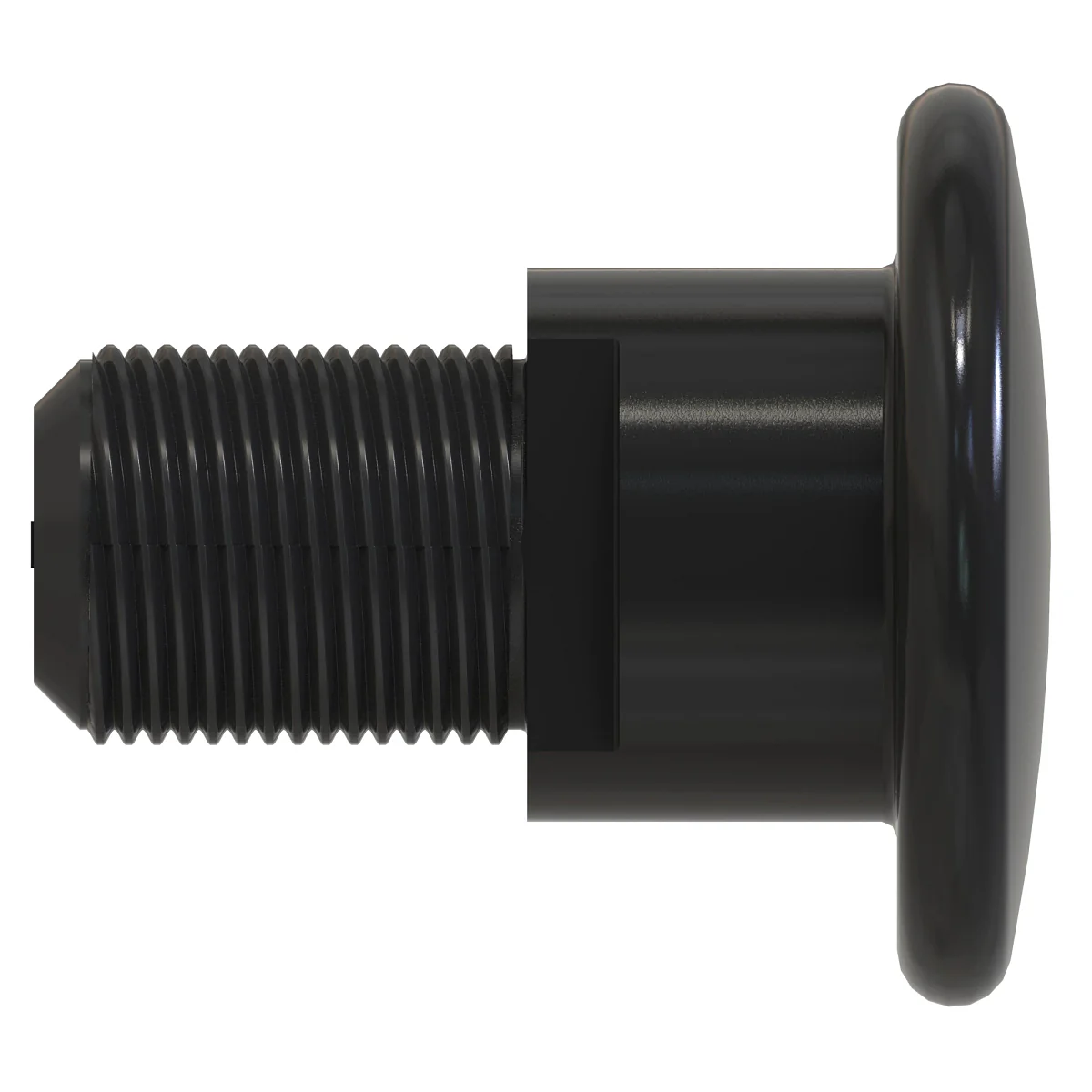

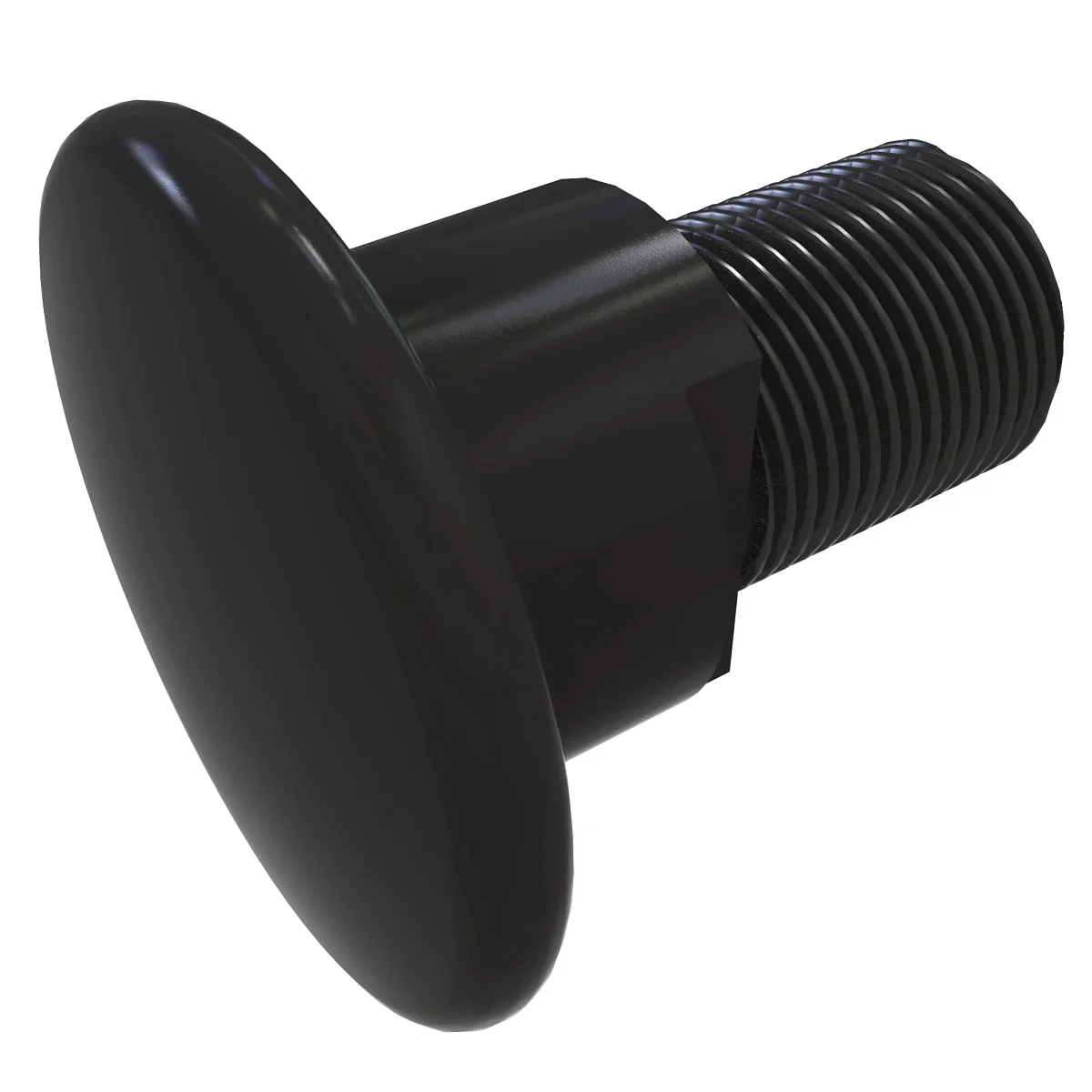

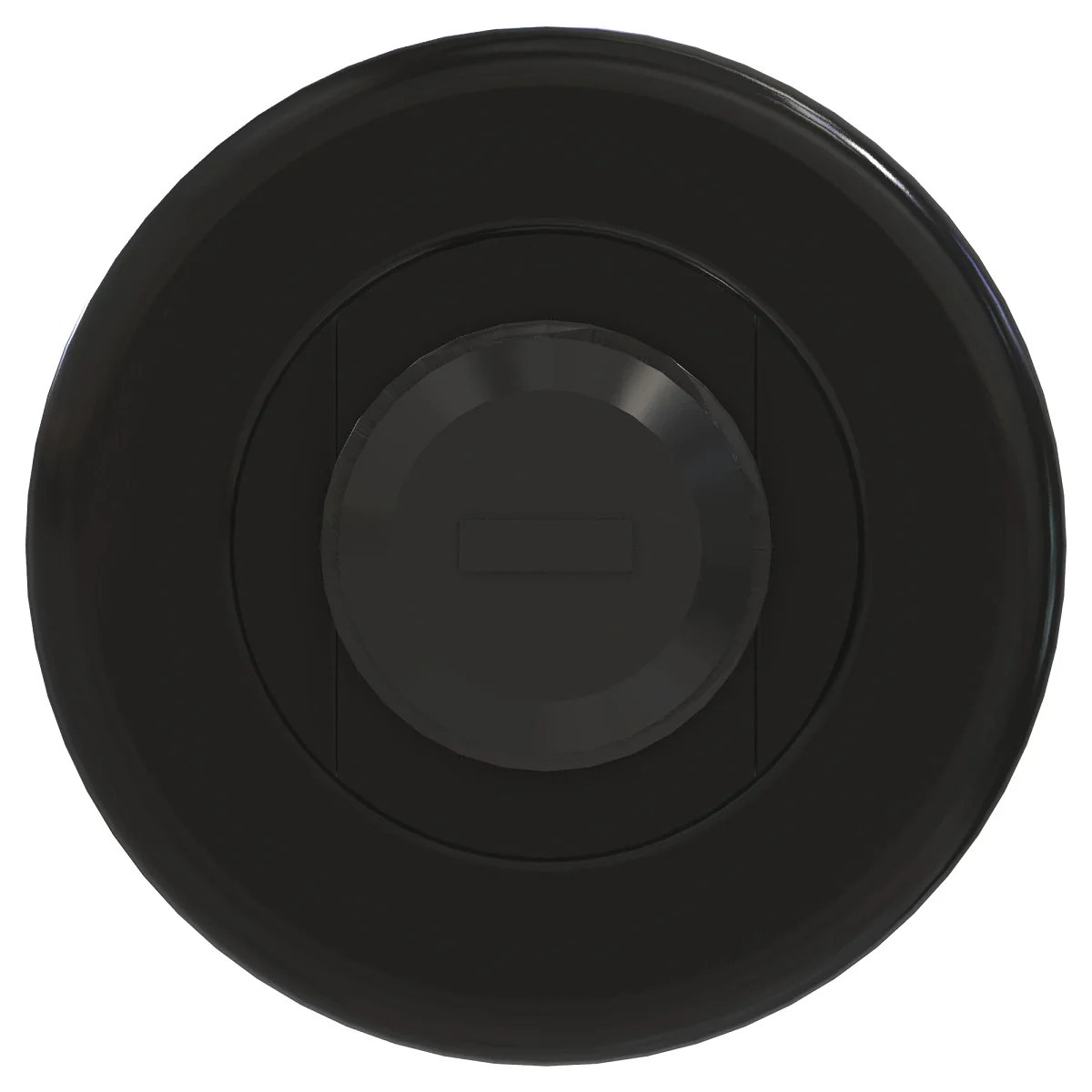

• Fillister Head Design: Rounded head profile delivers strong clamping while maintaining clearance in tight mechanical assemblies.
• Shoulder Screw Construction: Smooth unthreaded shoulder supports alignment or pivoting components without stressing threads.
• M12 × 28 Metric Size: 12 mm thread diameter with a 28 mm overall length for precise fitment.
• Precision Thread Pitch: 1.75 mm pitch ensures reliable engagement and torque retention under load.
• Durable Steel with Zinc Flake Coating: High-strength construction plus corrosion resistance for outdoor agricultural use.
• Targeted Applications: Optimized for disc mower blade mounting and other equipment requiring precise alignment or pivot points; suitable as a replacement for worn blade bolts or shoulder screws.

Product Details

• Product Type: Fillister Head Shoulder Screw
• Brand: John Deere
• Part Number: CC19994
• Thread Size: M12
• Thread Pitch: 1.75 mm
• Overall Length: 28 mm
• Thread Length: 16 mm
• Body Length: 12 mm
• Body Diameter: 17.98 mm
• Material: High-strength steel
• Finish: Zinc flake corrosion-resistant coating
• Weight: Approx. 0.121 lb (≈ 0.055 kg)

Compatibility

• Commonly used on mower and forage equipment, including models such as: 265 and 275.
• Widely employed on disc mower and cutting machines including: GMD600, GMD700, GMD800, GMD802, GMD902, FC243, FC250, FC280, FC300, FC302, FC303, FC350, FC4000.
• Compatibility may vary depending on equipment configuration. Always verify with the machine parts catalogue or serial number before ordering.
