Key Features

• Headless, cylindrical, straight fastening pin designed for through-hole insertion without a visible head.
• No provisions for auxiliary securing devices, yielding a simple, compact profile with reduced snag risk.
• Locking action provides retention within the bore, minimizing the need for additional fasteners.
• Pin contacts are coded 8409-10 for identification, traceability, and compatibility verification.

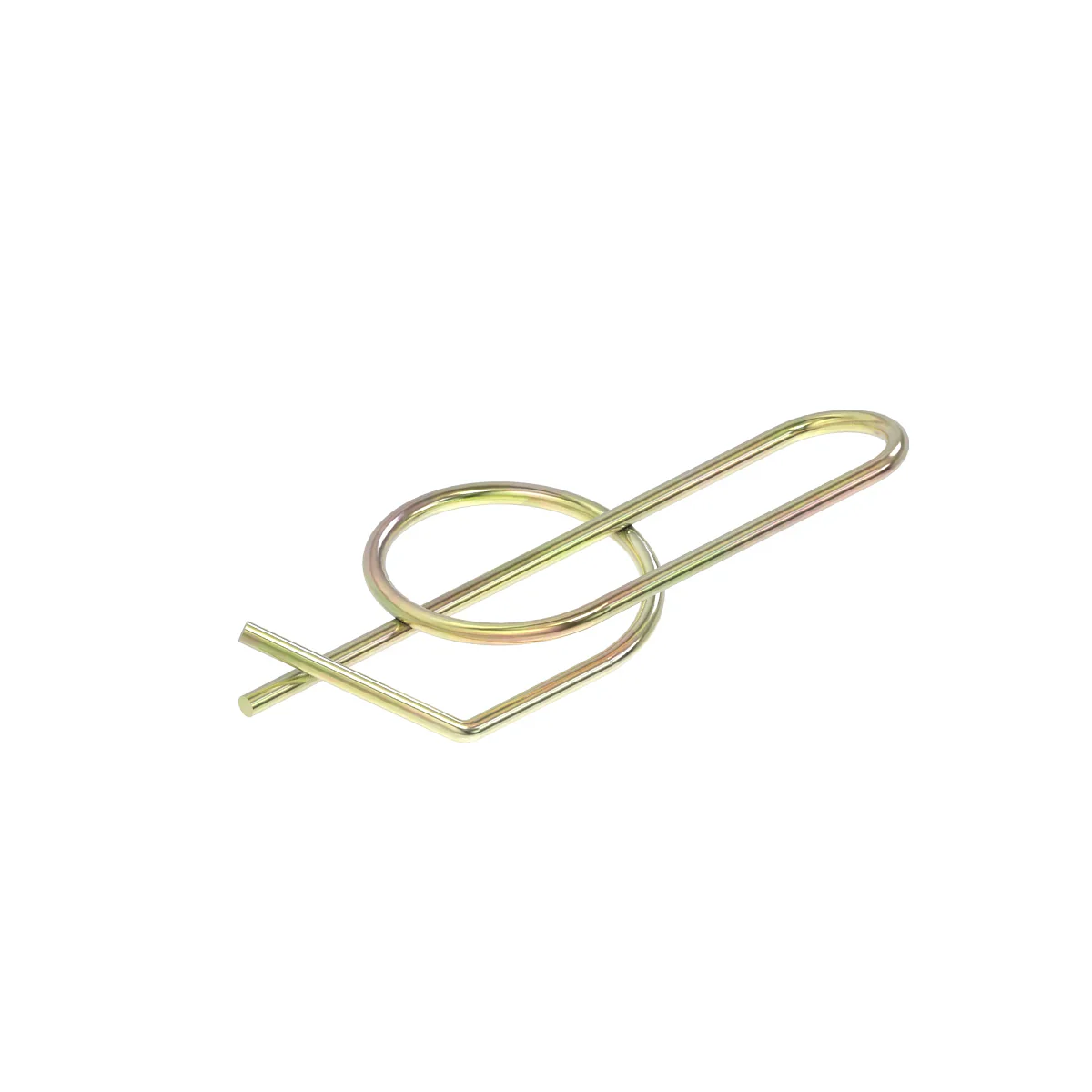

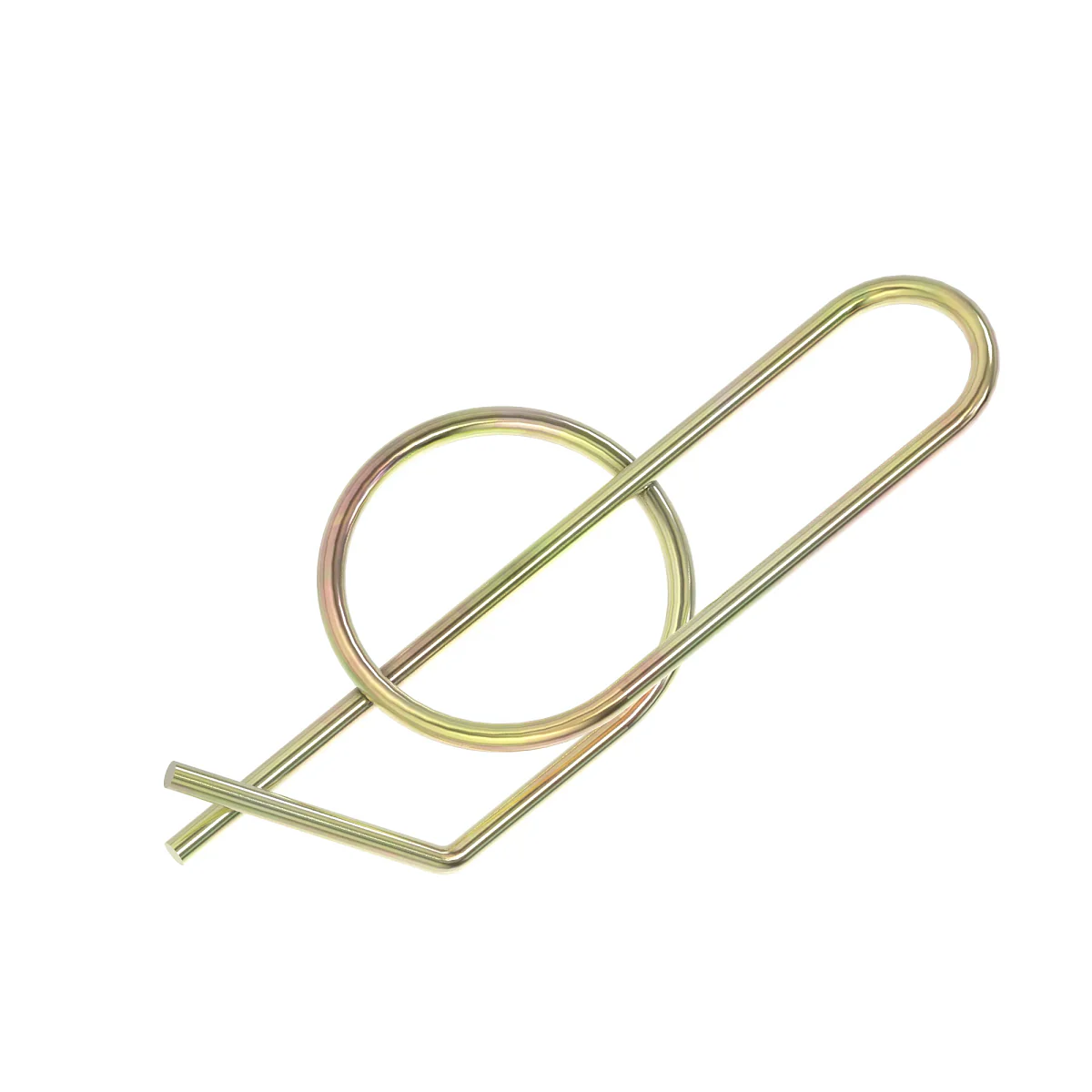

• John Deere part: Spring Locking Pin – TCU33336, cataloged under category 5580 pin types.

Product Details

• Brand: John Deere
• Model/Part Number: TCU33336
• Type: Spring locking pin (headless, cylindrical, straight)
• Pin contacts: 8409-10
• Category: 5580 pin types
• Design characteristics: headless, cylindrical, straight; no provisions for auxiliary securing devices

Compatibility

• Suitable for assemblies that specify a headless, straight locking pin within category 5580 pin types.
• Intended for John Deere equipment and attachments requiring this pin type and contact code 8409-10 for proper mating.
• Best used in through-hole connections where retention is achieved by an internal locking mechanism without external hardware.
• Not intended for applications that require additional securing hardware or head-based locking pins.
