Key Features

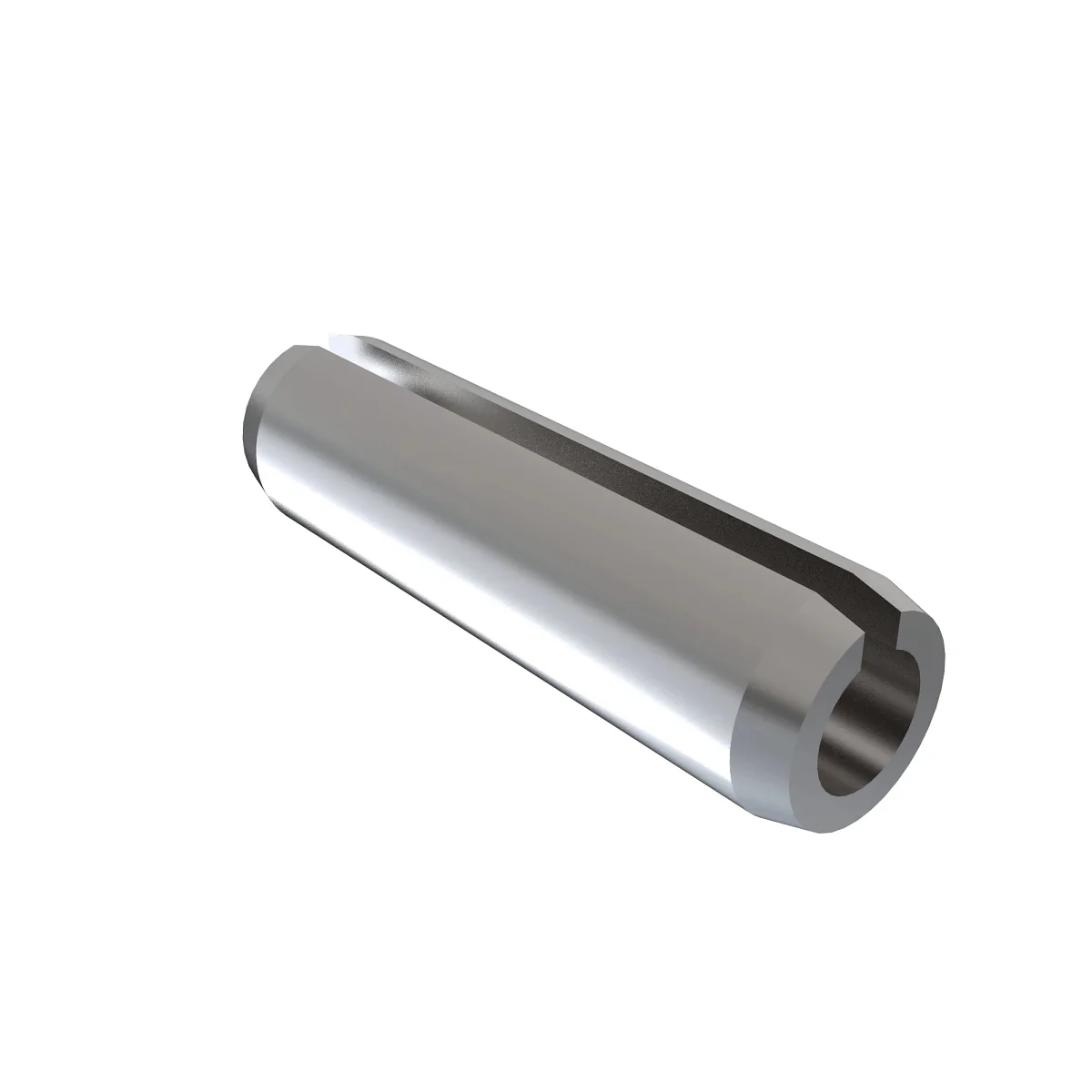

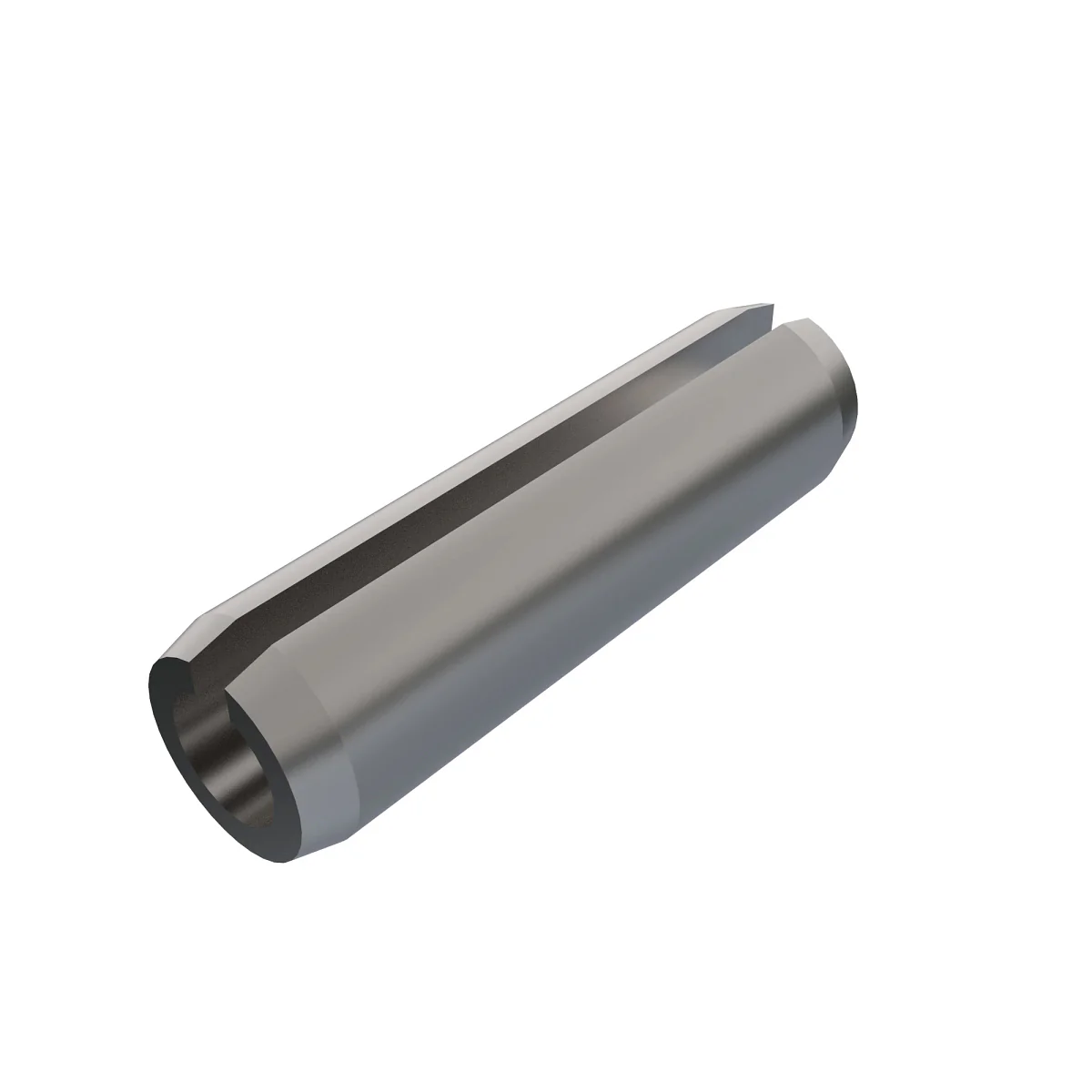

• John Deere Spring Pin 34M7047: Hollow, headless design suited for compact retention in confined spaces.
• Ends configured with rounded or chamfered profiles to ease entry and reduce edge damage during installation.
• Interference-fit retention: Pin diameter is slightly larger than the mating hole to secure components via radial expansion.
• Ideal for field-service and maintenance tasks on agricultural equipment and assemblies requiring removable yet reliable retention.
• Zero protruding head design minimizes interference with adjacent parts in tight-fitting assemblies.

Product Details

• Designation: John Deere Spring Pin – 34M7047
• Type: Hollow, headless spring pin
• End design: Rounded or chamfered ends for smooth driving
• Fit characteristic: Diameter slightly larger than the corresponding hole
• Primary use: Retention and alignment in John Deere equipment and similar assemblies

Compatibility

• Hole fit: Requires a mating hole whose diameter is slightly smaller than the pin to achieve the intended interference-fit retention.
• Applications: Suitable for agricultural machinery, linkages, hinges, and other assemblies that utilize hollow headless pins for secure, removable retention.
• Installation note: Use appropriate pin-driving tools and ensure alignment to prevent deformation or misfit.
