Key Features

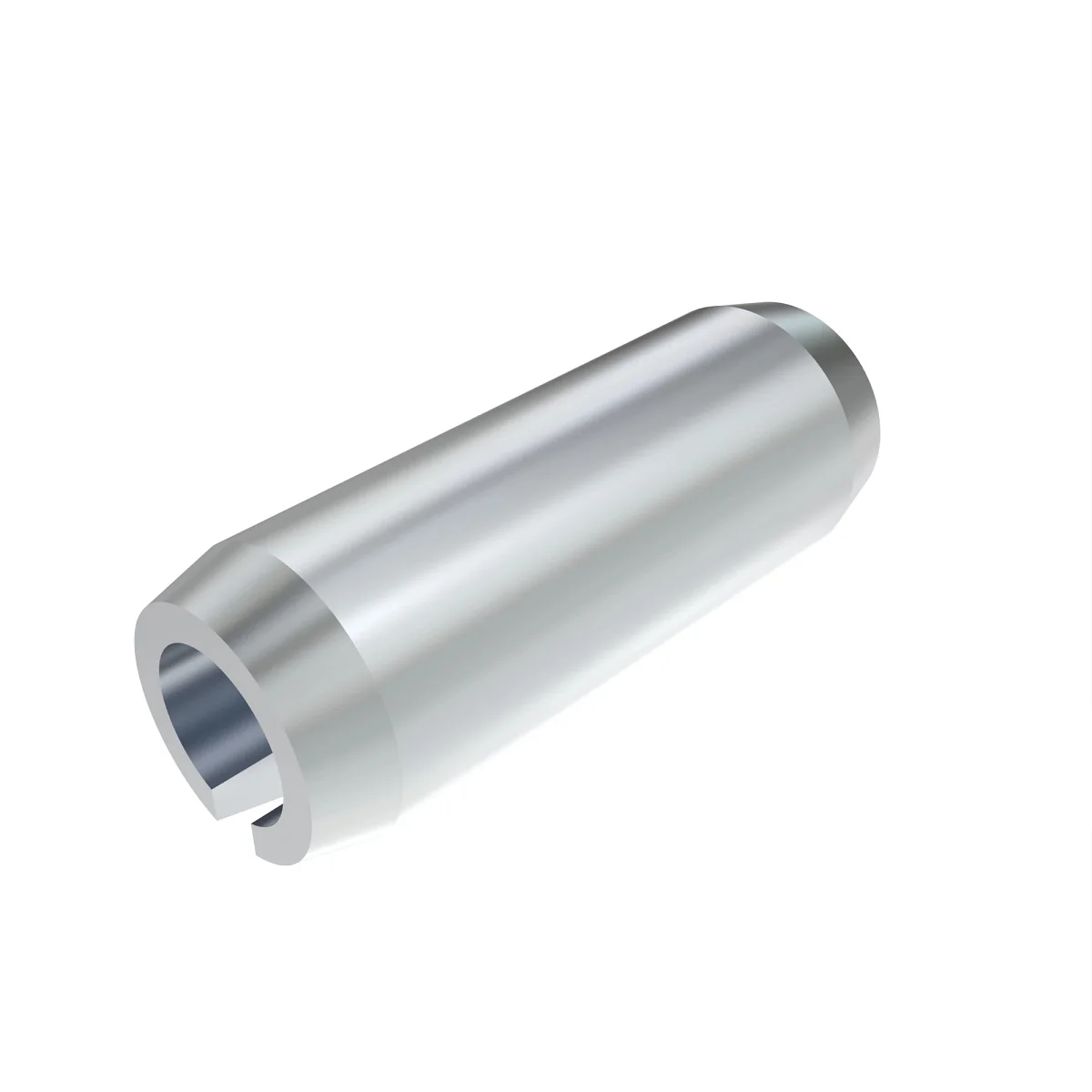

• John Deere Spring Pin 34M7197 — hollow, headless pin designed for flush seating in assemblies.
• Ends are rounded or chamfered to ease insertion and reduce edge wear on mating holes.
• Outer diameter is slightly larger than the target hole to create an interference-fit when pressed into place.
• Low-profile, non-protruding retention that keeps the assembly surface free of protrusions.
• Designed for simple installation and removal using standard tooling (driving or pressing into a pre-formed hole).

Product Details

• Type: Hollow, headless spring pin (John Deere Spring Pin 34M7197)
• End geometry: Rounded or chamfered ends
• Fit principle: Diameter slightly larger than the corresponding hole to achieve secure retention via interference-fit
• Primary function: Locates and retains components within mechanical assemblies

Compatibility

• Hole diameter: Matched to ensure an interference-fit; the pin outer diameter should be slightly larger than the target hole.
• Installation: Best suited for pre-formed holes that correspond to the pin size; ensure proper alignment to avoid edge damage during insertion.
• Application context: Suitable for mechanical assemblies requiring flush retention without protruding features.
