Key Features

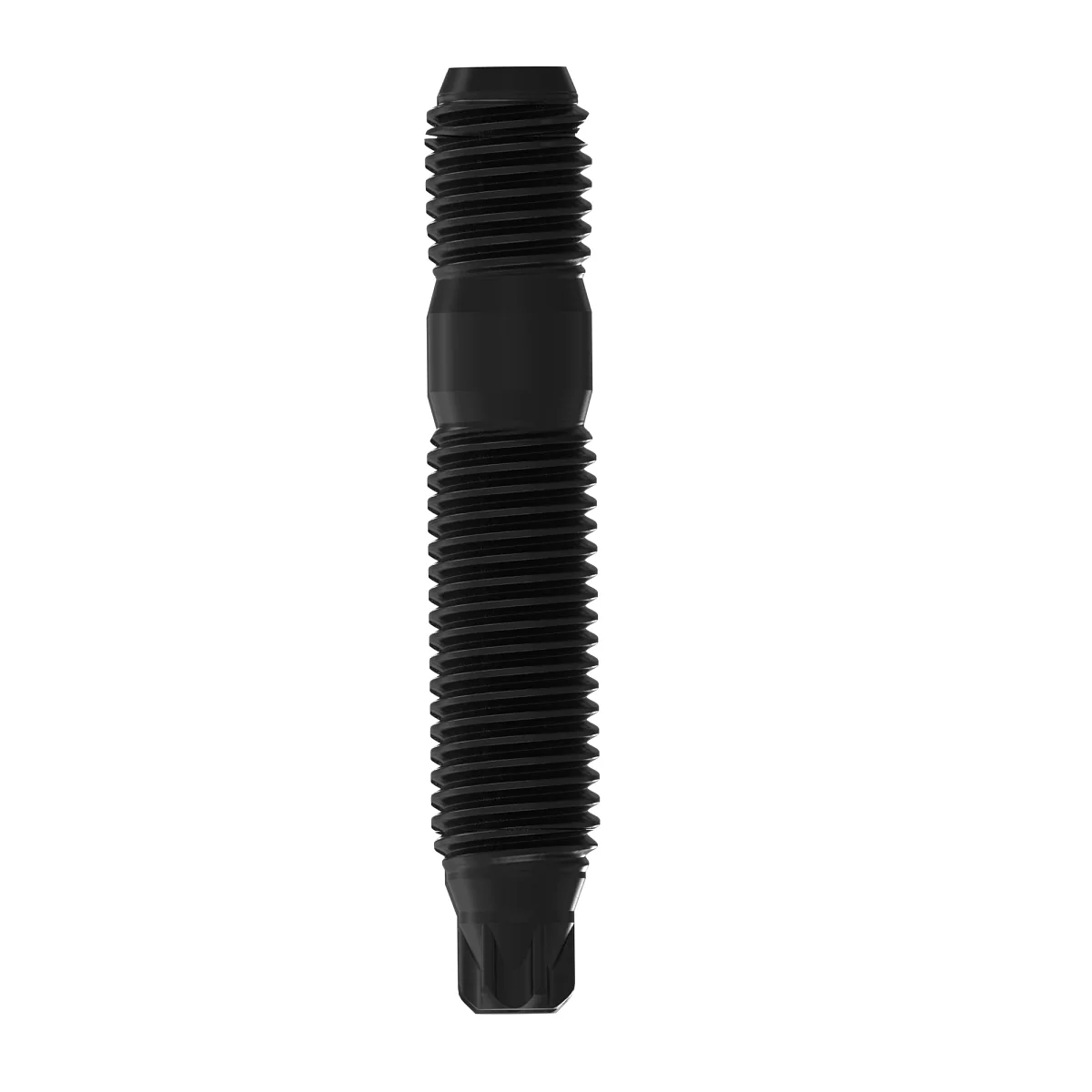

• Genuine OEM John Deere R543352 Turbo Foot Stud for secure turbocharger mounting to engine assemblies.
• M10 × 59 metric size with 1.5 mm thread pitch and ~34.63 mm thread length for precise fitment in turbo mounting points.
• High‑strength steel construction designed to withstand high temperatures, vibration, and engine loads typical of turbocharged diesel systems.
• Designed to provide accurate alignment and secure clamping with nuts for reliable turbo housing mounting.
• OEM quality aligned with John Deere specifications to ensure dependable installation and long service life.
• Ideal for turbocharger mounting on diesel engines, replacement of worn or damaged studs, and maintenance on agricultural and heavy equipment.

Product Details

• Product Type: Turbo Foot Stud
• Brand: John Deere
• Part Number: R543352
• Thread Size: M10
• Total Length: 59 mm (≈ 2.32 in)
• Thread Pitch: 1.5 mm
• Thread Length: Approx. 34.63 mm
• Material: High-strength steel
• Weight: Approx. 0.07 lb (0.032 kg)

Compatibility

The John Deere R543352 Turbo Foot Stud is used across a wide range of John Deere tractors, harvesters, and construction equipment, including but not limited to:

• 6M Series Tractors: 6M 145, 6M 155, 6M 165, 6M 180, 6M 185, 6M 200, 6M 220, 6M 230, 6M 240, 6M 250
• 6R Series Tractors: 6R 145, 6R 155, 6R 165, 6R 175, 6R 185, 6R 195, 6R 215, 6R 230, 6R 250
• 7R Series: 7R 210, 7R 230, 7R 250, 7R 270, 7R 290, 7R 310, 7R 330, 7R 350
• 8R Series: 8R 230, 8R 250, 8R 280, 8R 310, 8R 340, 8R 370, 8R 410

Note: This part is also used on many additional John Deere agricultural, forestry, and construction machines. Always confirm compatibility using the equipment serial number or official parts catalogue.
